× DataGrid for Qt.C++

multi row - column setting

10 years 7 months ago #1 by Kwangho Kim
multi row - column setting was created by Kwangho Kim

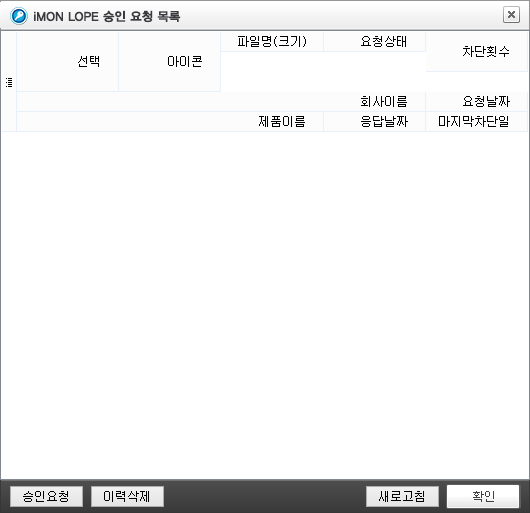

I want to above column settings, but below screenshot was my result. ;-(



ps. qtitandatagrid documentation is hell!


void CManageUnapproveSWModel::createColumns()
{
if( m_view == NULLPTR )
return;

Qtitan::GridBandedTableView* spView = qobject_cast<Qtitan::GridBandedTableView*>(m_view);

auto spProcessBand = spView->addBand( tr( "??????" ) );
auto spBlockInfoBand = spView->addBand( tr( "????" ) );
auto spApproveInfoBand = spView->addBand( tr( "????" ) );

spProcessBand->setBandIndex( 0 );
spBlockInfoBand->setBandIndex( 1 );
spApproveInfoBand->setBandIndex( 2 );

((Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_SELECT ))->setEditorType( Qtitan::GridEditorType::CheckBoxEditorType );

setColumnProperty( TBL_AML_HDX_SELECT, 0, 0, 3 );

setColumnProperty( TBL_AML_HDX_ICON, 0, 0, 3 );

setColumnProperty( TBL_AML_HDX_FILENAME, 0, 0, 1 );
setColumnProperty( TBL_AML_HDX_APPROVESTAT, 0, 0, 1 );
setColumnProperty( TBL_AML_HDX_BLOCKCOUNT, 0, 0, 2 );

setColumnProperty( TBL_AML_HDX_COMPANYNAME, 1, 0, 1 );
setColumnProperty( TBL_AML_HDX_REQUESTDATE, 1, 0, 1 );

setColumnProperty( TBL_AML_HDX_PRODUCTNAME, 2, 0, 1 );
setColumnProperty( TBL_AML_HDX_RESPONSEDATE, 2, 0, 1 );
setColumnProperty( TBL_AML_HDX_LASTBLOCKDATE, 2, 0, 1 );

}


void CManageUnapproveSWModel::setColumnProperty( const QString& columnCaption, int rowIndex, int bandIndex, int rowSpan )
{
Qtitan::GridBandedTableColumn* colBase = NULLPTR;
Qtitan::GridBandedTableView* spView = qobject_cast<Qtitan::GridBandedTableView*>(m_view);

colBase = static_cast<Qtitan::GridBandedTableColumn*>(spView->getColumnByCaption( columnCaption ));
if( colBase == NULLPTR )
return;

if( rowIndex > 0 )
colBase->setRowIndex( rowIndex );
colBase->setBandIndex( bandIndex );
colBase->setRowSpan( rowSpan );

}
Attachments:

Please Log in or Create an account to join the conversation.

More
10 years 7 months ago #2 by Developer Machines
Replied by Developer Machines on topic multi row - column setting
To configure that you need please exec the following code:
    view->beginUpdate();

    Qtitan::GridTableBand* selectBand = view->addBand("Band Select");  //Band index 0
    Qtitan::GridTableBand* iconBand = view->addBand("Band Icon"); //Band index 1
    Qtitan::GridTableBand* nameBand = view->addBand("Band Name"); //Band index 2
    Qtitan::GridTableBand* dateBand = view->addBand("Band Date"); //Band index 3
    Qtitan::GridTableBand* msicBand = view->addBand("Band Misc"); //Band index 4

    view->setModel(model, QModelIndex(), false);

    Qtitan::GridBandedTableColumn* column0 = (Qtitan::GridBandedTableColumn *)view->addColumn(0, "Select");
    column0->setBandIndex(selectBand->index() /* index is 0 */);
    column0->setRowSpan(3);

    Qtitan::GridBandedTableColumn* column1 = (Qtitan::GridBandedTableColumn *)view->addColumn(1, "Icon");
    column1->setBandIndex(iconBand->index() /* index is 1 */);
    column1->setRowSpan(3);

    Qtitan::GridBandedTableColumn* column2 = (Qtitan::GridBandedTableColumn *)view->addColumn(2, "FileName(Size)");
    column2->setBandIndex(nameBand->index() /* index is 2 */);
    column2->setRowIndex(0);

    Qtitan::GridBandedTableColumn* column3 = (Qtitan::GridBandedTableColumn *)view->addColumn(3, "CompanyName");
    column3->setBandIndex(nameBand->index() /* index is 2 */);
    column3->setRowIndex(1);

    Qtitan::GridBandedTableColumn* column4 = (Qtitan::GridBandedTableColumn *)view->addColumn(4, "ProductName");
    column4->setBandIndex(nameBand->index() /* index is 2 */);
    column4->setRowIndex(2);

    Qtitan::GridBandedTableColumn* column5 = (Qtitan::GridBandedTableColumn *)view->addColumn(5, "ApproveDate");
    column5->setBandIndex(dateBand->index() /* index is 3 */);
    column5->setRowIndex(0);

    Qtitan::GridBandedTableColumn* column6 = (Qtitan::GridBandedTableColumn *)view->addColumn(6, "RequestDate");
    column6->setBandIndex(dateBand->index() /* index is 3 */);
    column6->setRowIndex(1);

    Qtitan::GridBandedTableColumn* column7 = (Qtitan::GridBandedTableColumn *)view->addColumn(7, "ResponseDate");
    column7->setBandIndex(dateBand->index() /* index is 3 */);
    column7->setRowIndex(2);

    Qtitan::GridBandedTableColumn* column8 = (Qtitan::GridBandedTableColumn *)view->addColumn(8, "BlockCount");
    column8->setBandIndex(msicBand->index() /* index is 4 */);
    column8->setRowIndex(0);
    column8->setRowSpan(2);

    Qtitan::GridBandedTableColumn* column9 = (Qtitan::GridBandedTableColumn *)view->addColumn(9, "LastBlockDate");
    column9->setBandIndex(msicBand->index() /* index is 4 */);
    column9->setRowIndex(1);

    view->endUpdate();

Let me know the results.

Please Log in or Create an account to join the conversation.

More
10 years 7 months ago #3 by Kwangho Kim
Replied by Kwangho Kim on topic multi row - column setting
ok thanks, abobe codes works well for me.
But, this code works only with setModel( autoCreateColumn = false )

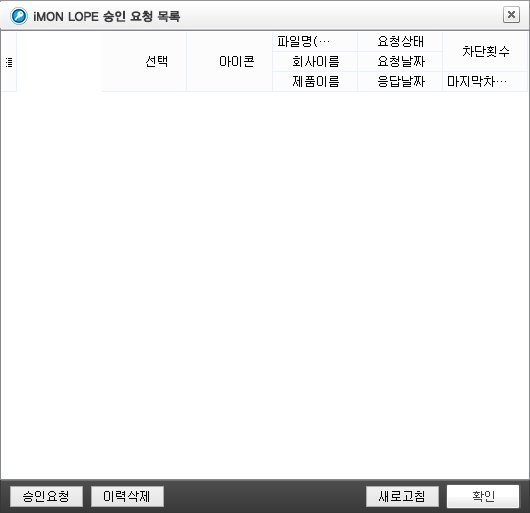

If i use setMode( autoCreateColumn = true ), below screenshot was results.






void CManageUnapproveSWModel::createColumns()
{
if( m_view == NULLPTR )
return;

Qtitan::GridBandedTableView* spView = qobject_cast<Qtitan::GridBandedTableView*>(m_view);

spView->beginUpdate();

Qtitan::GridTableBand* selectBand = spView->addBand( "Band Select" ); //Band index 0
Qtitan::GridTableBand* iconBand = spView->addBand( "Band Icon" ); //Band index 1
Qtitan::GridTableBand* nameBand = spView->addBand( "Band Name" ); //Band index 2
Qtitan::GridTableBand* dateBand = spView->addBand( "Band Date" ); //Band index 3
Qtitan::GridTableBand* msicBand = spView->addBand( "Band Misc" ); //Band index 4

Qtitan::GridBandedTableColumn* column0 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_SELECT );
column0->setBandIndex( selectBand->index() /* index is 0 */ );
column0->setRowSpan( 3 );

Qtitan::GridBandedTableColumn* column1 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_ICON );
column1->setBandIndex( iconBand->index() /* index is 1 */ );
column1->setRowSpan( 3 );

Qtitan::GridBandedTableColumn* column2 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_FILENAME );
column2->setBandIndex( nameBand->index() /* index is 2 */ );
column2->setRowIndex( 0 );

Qtitan::GridBandedTableColumn* column3 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_COMPANYNAME );
column3->setBandIndex( nameBand->index() /* index is 2 */ );
column3->setRowIndex( 1 );

Qtitan::GridBandedTableColumn* column4 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_PRODUCTNAME );
column4->setBandIndex( nameBand->index() /* index is 2 */ );
column4->setRowIndex( 2 );

Qtitan::GridBandedTableColumn* column5 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_APPROVESTAT );
column5->setBandIndex( dateBand->index() /* index is 3 */ );
column5->setRowIndex( 0 );

Qtitan::GridBandedTableColumn* column6 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_REQUESTDATE );
column6->setBandIndex( dateBand->index() /* index is 3 */ );
column6->setRowIndex( 1 );

Qtitan::GridBandedTableColumn* column7 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_RESPONSEDATE );
column7->setBandIndex( dateBand->index() /* index is 3 */ );
column7->setRowIndex( 2 );

Qtitan::GridBandedTableColumn* column8 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_BLOCKCOUNT );
column8->setBandIndex( msicBand->index() /* index is 4 */ );
column8->setRowIndex( 0 );
column8->setRowSpan( 2 );

Qtitan::GridBandedTableColumn* column9 = (Qtitan::GridBandedTableColumn *)spView->getColumnByCaption( TBL_AML_HDX_LASTBLOCKDATE );
column9->setBandIndex( msicBand->index() /* index is 4 */ );
column9->setRowIndex( 1 );

spView->endUpdate();
}


QVariant CManageUnapproveSWModel::headerData( int section, Qt::Orientation orientation, int role /*= Qt::DisplayRole */ ) const
{
QVariant vtHeaderData;

do
{
if( orientation != Qt::Horizontal )
break;

if( role != Qt::DisplayRole )
break;

switch( section )
{
// ?? ??? ?? ?? ??
case 0:
vtHeaderData = TBL_AML_HDX_SELECT;
break;
case 1:
vtHeaderData = TBL_AML_HDX_ICON;
break;
case 2:
vtHeaderData = TBL_AML_HDX_FILENAME;
break;
case 3:
vtHeaderData = TBL_AML_HDX_COMPANYNAME;
break;
case 4:
vtHeaderData = TBL_AML_HDX_PRODUCTNAME;
break;
case 5:
vtHeaderData = TBL_AML_HDX_APPROVESTAT;
break;
case 6:
vtHeaderData = TBL_AML_HDX_REQUESTDATE;
break;
case 7:
vtHeaderData = TBL_AML_HDX_RESPONSEDATE;
break;
case 8:
vtHeaderData = TBL_AML_HDX_BLOCKCOUNT;
break;
case 9:
vtHeaderData = TBL_AML_HDX_LASTBLOCKDATE;
break;

}

} while (false);

return vtHeaderData;
}


CManageUnapproveSWUI::CManageUnapproveSWUI( QWidget* parent /*= 0 */ )
: QDialog( parent, Qt::FramelessWindowHint )
{
ui.setupUi( this );

// std::wstring xmlFile = nsCommon::nsCmnFormatter::tsFormat( L"%1\\%2", nsCommon::nsCmnPath::GetCurrentPath(), SVC_CONFIG_NAME );
//
// if( PathFileExistsW( xmlFile.c_str() ) != FALSE )
// _customSQLModel.init( CU2U8(xmlFile).c_str(), "//tblAmalgamationItem/column", "TBL_AMALGAMATION_LOG" );
// else
// {
// xmlFile = nsCommon::nsCmnFormatter::tsFormat( L"%1\\%2.sample", nsCommon::nsCmnPath::GetCurrentPath(), SVC_CONFIG_NAME );
// if( PathFileExistsW( xmlFile.c_str() ) != FALSE )
// _customSQLModel.init( CU2U8( xmlFile ).c_str(), "//tblAmalgamationItem/column", "TBL_AMALGAMATION_LOG" );
// }

ui.tblUnapproveSW->setViewType( Qtitan::Grid::BandedTableView );
auto tblAmalgamation = ui.tblUnapproveSW->view< Qtitan::GridBandedTableView >();
auto& tblOptions = tblAmalgamation->options();

tblOptions.setGroupsHeader( false );
tblOptions.setBandsHeader( false );
tblOptions.setColumnAutoWidth( true );
tblOptions.setRowAutoHeight( true );

_amalgamationItemModel.init( tblAmalgamation );
tblAmalgamation->setModel( &_amalgamationItemModel, QModelIndex(), true );
_amalgamationItemModel.createColumns();
}
Attachments:

Please Log in or Create an account to join the conversation.

More
10 years 7 months ago - 10 years 7 months ago #4 by Developer Machines
Replied by Developer Machines on topic multi row - column setting
In case of autoCreateColumn = true grid creates one band by default for adding created columns to it (i.e. selectBand->index() is 1 ). Please do tblOptions.setBandsHeader( true ); to see what happens. So you have to remove this first unused band after createColumns() for instance or get first band and rename it to "Band Select".
Last edit: 10 years 7 months ago by Developer Machines.

Please Log in or Create an account to join the conversation.

More
10 years 7 months ago #5 by Kwangho Kim
Replied by Kwangho Kim on topic multi row - column setting
Oh, Thanks for your reply.
